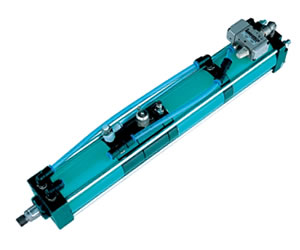

dkPOWER - Hidropnömatik Silindir - S Tipi 6 Bar

Kullanım Değerleri

  • Toplam Strok : 50 - 400 mm
  • Güç Stroğu : 5 - 80 mm
  • Kuvvet : 0,6 - 100 ton
  • Operasyon Basıncı : 2 - 6 bar
  • Özel Uygulama : Maksimum 6 bar hava ile tam güç
  • Güç Stroğu Kısıtlaması : Mümkün

    İndir

  • Katalog - Broşür

    		•

    Genel Ölçü Tablosu
    Tip Top. Strok İş. Stroğu Max. Güç Hızlı İniş Gücü Yukarı Çıkış Gücü A A' B C D E F G f7 H J K L M N O
      mm daN mm     mm   mm
    06 S01 50 6 670 55 58 50 - 437 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S01 50 12 600 55 58 60 - 474 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S01 100 6 670 55 58 50 - 577 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S01 100 12 600 55 58 60 - 800 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S02 50 6 105 83 97 60 - 498 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S02 50 12 1070 83 97 70 - 498 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S02 100 6 1050 83 97 60 - 644 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S02 100 12 1070 83 97 70 - 628 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S02 150 6 1050 83 97 60 - 790 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S02 150 12 1070 83 97 70 - 758 40 6xM 6*12 M12*1,5 16 30 12 24 10 G 1/8" - - 14
    06 S03 50 6 1810 144 154 70 - 488 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 50 12 1660 144 154 70 85 530 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 70 25 1660 144 154 70 85 663 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 100 6 1810 144 154 70 - 620 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 100 12 1660 144 154 70 85 652 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 100 25 1660 144 154 70 85 734 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 205 17
    06 S03 100 40 2000 144 154 70 110 760 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 245 17
    06 S03 150 6 1810 144 154 70 - 752 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 150 12 1660 144 154 70 85 774 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 405 17
    06 S03 150 25 1660 144 154 70 85 856 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 405 17
    06 S03 150 40 2000 144 154 70 110 872 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 405 17
    06 S03 150 50 200 144 154 70 110 916 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 405 17
    06 S03 200 6 1810 144 154 70 - 884 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - - 17
    06 S03 200 12 1660 144 154 70 85 896 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 505 17
    06 S03 200 25 1660 144 154 70 85 979 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 505 17
    06 S03 200 40 2000 144 154 70 110 984 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 505 17
    06 S03 200 60 2000 144 154 70 110 1071 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 505 17
    06 S03 250 60 2000 144 154 70 110 1183 54 6xM 8*12 M16*1,5 20 40 15 26 10 G 1/4" - 605 17
    06 S04 50 6 3330 187 200 85 - 563 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 50 12 3330 187 200 85 - 641 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 70 25 4070 187 200 90 110 767 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 251 24
    06 S04 100 6 3330 187 200 85 - 709 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 100 12 3330 187 200 85 - 787 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 100 25 4070 187 200 90 110 843 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 311 24
    06 S04 150 6 3330 187 200 85 - 855 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 150 12 3330 187 200 85 - 933 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 150 25 4070 187 200 90 110 969 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 411 24
    06 S04 150 40 3600 187 200 90 135 926 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 411 24
    06 S04 200 6 3330 187 200 85 - 1001 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 200 12 3330 187 200 85 - 1079 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 200 25 4070 187 200 90 110 1095 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 511 24
    06 S04 200 40 3600 187 200 90 135 1042 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 511 24
    06 S04 200 50 3600 187 200 90 135 1093 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 511 24
    06 S04 250 12 3330 187 200 85 - 1225 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - - 24
    06 S04 250 25 4070 187 200 90 110 1221 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 611 24
    06 S04 250 40 3600 187 200 90 135 1158 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 611 24
    06 S04 300 60 3600 187 200 90 135 1377 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 711 24
    06 S04 400 60 3600 187 200 90 135 1611 64 6xM 8*15 M22*2 30 50 20 28.5 10 G 3/8" - 911 24
    06 S05 50 6 7820 324 344 110 - 651 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 50 12 7820 324 344 110 - 755 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 50 20 6910 324 344 115 135 731 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - 241 36
    06 S05 100 6 7820 324 344 110 - 801 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 100 12 7820 324 344 110 - 905 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 100 25 6910 324 344 115 135 912 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - 341 36
    06 S05 100 40 7230 324 344 115 170 943 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 341 36
    06 S05 150 6 7820 324 344 110 - 951 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" -  - 36
    06 S05 150 12 7820 324 344 110 - 1055 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 150 25 6910 324 344 115 135 1044 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - 441 36
    06 S05 150 40 7230 324 344 115 170 1063 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 441 36
    06 S05 200 6 7820 324 344 110 - 1101 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 200 12 7820 324 344 110 - 1205 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 200 25 6910 324 344 115 135 1176 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - 541 36
    06 S05 200 40 7230 324 344 115 170 1183 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 541 36
    06 S05 200 60 7230 324 344 115 170 1308 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 541 36
    06 S05 250 12 7820 324 344 110 - 1355 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - - 36
    06 S05 250 25 6910 324 344 115 135 1308 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" - 641 36
    06 S05 250 40 7230 324 344 115 170 1303 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 641 36
    06 S05 300 60 7230 324 344 115 170 1548 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 741 36
    06 S05 400 60 7230 324 344 115 170 1788 88 6xM 10*16 M30X2 45 70 25 35 10 G1/2" 17 941 36
    06 S06 50 6 13380 460 565 135 - 693 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 50 12 13380 460 565 135 - 807 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 100 6 13380 460 565 135 - 855 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 100 12 13380 460 565 135 - 970 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 100 25 14000 460 565 140 170 1054 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 353 41
    06 S06 150 6 13380 460 565 135 - 1018 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 150 12 13380 460 565 135 - 1133 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 150 25 14000 460 565 140 170 1194 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 453 41
    06 S06 150 40 13380 460 565 140 200 1269 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 453 41
    06 S06 200 6 13380 460 565 135 - 1181 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 200 12 13380 460 565 135 - 1269 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 200 25 14000 460 565 140 170 1334 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 553 41
    06 S06 200 40 13380 460 565 140 200 1399 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 553 41
    06 S06 250 12 13380 460 565 135 - 1459 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 - 41
    06 S06 250 25 14000 460 565 140 170 1474 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 653 41
    06 S06 250 40 13380 460 565 140 200 1529 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 653 41
    06 S06 300 40 13380 460 565 140 200 1659 100 6xM 16*25 M30X2 50 75 25 36 15 G1/2" 17 753 41
    06 S07 50 6 28300 675 970 198 - 803 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 100 6 28300 675 970 198 - 981 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 100 12 28300 675 970 198 - 1131 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 100 20 30650 675 970 198 270 998 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 361 50
    06 S07 150 6 28300 675 970 198 - 1159 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 150 12 28300 675 970 198 - 1309 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 150 25 30650 675 970 198 270 1185 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 461 50
    06 S07 200 6 28300 675 970 198 - 1337 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 200 12 28300 675 970 198 - 1487 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 200 25 30650 675 970 198 270 1317 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 561 50
    06 S07 200 35 30650 675 970 198 270 1428 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 561 50
    06 S07 250 12 28300 675 970 198 - 1665 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 23 - 50
    06 S07 300 25 30650 675 970 198 270 1581 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 761 50
    06 S07 300 40 30650 675 970 198 270 1748 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 761 50
    06 S07 400 40 30650 675 970 198 270 2012 132 6xM 20*30 M39X2 56 100 35 47 18 G3/4" 17 961 50

    Genel Ölçü Tablosu
    Tip Top. Strok İş. Stroğu Max. Güç Hızlı İniş Gücü Yukarı Çıkış Gücü A A' B C D E F G f7 H J K L M N O
      mm daN mm     mm   mm
    06 S08 70 6 45900 725 1225 240 - 957 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 23 - 55
    06 S08 100 6 45900 725 1225 240 - 1075 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 23 - 55
    06 S08 100 12 47600 725 1225 240 270 1026 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 17 367 55
    06 S08 150 6 45900 725 1225 240 - 1271 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 23 - 55
    06 S08 200 10 45900 725 1225 240 - 1597 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 23 - 55
    06 S08 200 20 47600 725 1225 240 270 1465 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 17 567 55
    06 S08 250 10 45900 725 1225 240 - 1793 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 23 55
    06 S08 300 20 47600 725 1225 240 270 1765 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 17 767 55
    06 S08 300 30 47600 725 1225 240 325 1693 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 21 767 55
    06 S08 400 40 47600 725 1225 240 325 2084 150 8xM 20*30 M42X2 63 115 40 52 25 G3/4" 21 967 55

    Genel Ölçü Tablosu
    Tip Top. Strok İş. Stroğu Max. Güç Hızlı İniş Gücü Yukarı Çıkış Gücü A A' B C D E F G f7 H J K L M N O
      mm daN mm     mm   mm
    06 S09 100 10 72700 1300 2250 325 1329 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S09 150 10 72700 1300 2250 325 1533 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S09 200 13 72700 1300 2250 325 1809 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S09 250 12 72700 1300 2250 325 2013 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S09 300 16 72700 1300 2250 325 2288 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S10 100 8 98500 1300 2250 325 1329 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S10 150 8 98500 1300 2250 325 1533 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S10 200 10 98500 1300 2250 325 1809 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S10 250 10 98500 1300 2250 325 2013 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
    06 S10 300 12 98500 1300 2250 325 2288 - 200 12xM 24*40 M64X2 100 150 60 60 25 G1" 31 - 85
