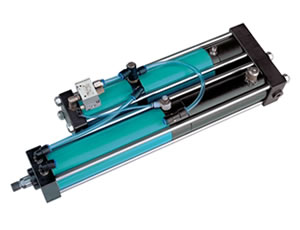

dkPOWER - Hidropnömatik Silindir - SK Tipi 10 Bar

Bu tip silindirler düz silindirlere nazaren daha küçük konstrüksiyonlarda kullanılırlar.

Kullanım Değerleri

  • Toplam Strok : 50 - 400 mm
  • Güç Stroğu : 5 - 40 mm
  • Kuvvet : 0,7 - 50 ton
  • Operasyon Basıncı : 2 - 10 bar
  • Özel Uygulama : Maksimum 10 bar hava ile tam güç
  • Güç Stroğu Kısıtlaması : Mümkün

    İndir

  • Katalog - Broşür

    		•

    Genel Ölçü Tablosu
    Tip Top. Strok İş. Stroğu Max. Güç Hızlı İniş Gücü Yukarı Çıkış Gücü A A' B C D E F G f7 H J K L M N O R
      mm daN mm     mm   mm
    10 SK01 100 5 700 95 100 50 - 331 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 7 105 14 -
    10 SK01 100 10 700 95 100 50 60 321 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 7 115 14 -
    10 SK01 100 20 1050 95 100 50 70 326 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 7 125 14 -
    10 SK01 150 5 700 95 100 50 - 431 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 7 105 14 -
    10 SK01 150 11 700 95 100 50 60 421 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 7 115 14 -
    10 SK01 150 20 1050 95 100 50 70 421 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 7 125 14 -
    10 SK02 100 5 1210 144 167 60 - 359 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 9 125 14 -
    10 SK02 100 10 1325 144 167 60 70 347 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 9 134 14 -
    10 SK02 100 14 1210 144 167 60 85 348 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 9 150 14 -
    10 SK02 150 5 1210 144 167 60 - 442 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 9 125 14 -
    10 SK02 150 11 1325 144 167 60 70 442 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 9 134 14 -
    10 SK02 150 20 1210 144 167 60 80 442 40 6XM 6X12 M12X1.5 16 30 12 24 10 G1/8" 9 150 14 -
    10 SK03 100 8 2100 250 265 70 - 369 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 145 17 -
    10 SK03 100 12 2070 250 265 70 85 384 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 160 17 -
    10 SK03 100 20 2070 250 265 70 770 378 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 185 17 -
    10 SK03 150 8 2100 250 265 70 - 449 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 145 17 -
    10 SK03 150 12 2070 250 265 70 85 449 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 160 17 -
    10 SK03 150 20 2070 250 265 70 110 449 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 185 17 -
    10 SK03 200 8 2100 250 265 70 - 549 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 145 17 -
    10 SK03 200 12 2070 250 265 70 85 549 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 160 17 -
    10 SK03 200 20 2070 250 265 70 110 549 54 6XM 8X12 M16X1.5 20 40 15 26 10 G1/4" 9 185 17 -
    10 SK04 100 5 4100 320 340 85 - 419 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 175 24 -
    10 SK04 100 10 4100 320 340 85 110 412 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 200 24 -
    10 SK04 100 20 4100 320 340 85 135 429 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 225 24 -
    10 SK04 150 5 4100 320 340 85 - 465 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 175 24 -
    10 SK04 150 10 4100 320 340 85 110 460 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 200 24 -
    10 SK04 150 20 4100 320 340 85 135 460 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 225 24 -
    10 SK04 200 5 4100 320 340 85 - 560 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 175 24 -
    10 SK04 200 10 4100 320 340 85 110 560 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 200 24 -
    10 SK04 200 20 4100 320 340 85 135 560 64 6XM 8X15 M22X2 30 50 20 28.5 10 G3/8" 11 225 24 -
    10 SK05 100 5 7840 560 595 110 - 467 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 225 36 -
    10 SK05 100 15 7840 560 595 110 135 467 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 250 36 -
    10 SK05 100 20 8200 560 595 110 170 520 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 285 36 -
    10 SK05 150 5 7840 560 595 110 - 517 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 225 36 -
    10 SK05 150 10 7840 560 595 110 135 499 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 250 36 -
    10 SK05 150 20 8200 560 595 110 170 540 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 285 36 -
    10 SK05 200 5 7840 560 595 110 - 599 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 225 36 -
    10 SK05 200 10 7840 560 595 110 135 599 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 250 36 -
    10 SK05 200 20 8200 560 595 110 170 599 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 285 36 -
    10 SK05 250 10 7840 560 595 110 135 699 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 250 36 -
    10 SK05 250 20 8200 560 595 110 170 699 88 6XM 8X16 M30X2 45 70 25 35 10 G1/2" 15 285 36 -
    10 SK06 100 5 15000 800 975 135 - 522 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 275 41 -
    10 SK06 100 10 15750 800 975 135 170 557 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 310 41 -
    10 SK06 100 20 15000 800 975 135 200 496 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 336 41 -
    10 SK06 150 5 15000 800 975 135 - 585 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 275 41 -
    10 SK06 150 10 15750 800 975 135 170 596 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 310 41 -
    10 SK06 150 20 15000 800 975 135 200 521 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 336 41 -
    10 SK06 200 5 15000 800 975 135 - 648 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 275 41 -
    10 SK06 200 10 15750 800 975 135 170 636 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 310 41 -
    10 SK06 200 20 15000 800 975 135 200 621 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 336 41 -
    10 SK06 250 5 15000 800 975 135 - 721 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 275 41 -
    10 SK06 250 10 15750 800 975 135 170 721 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 310 41 -
    10 SK06 250 20 15000 800 975 135 200 721 100 6XM 16X25 M30X2 50 75 25 36 15 G1/2" 17 336 41 -
    10 SK07 100 10 30250 1150 1675 198 270 584 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 -
    10 SK07 150 10 30250 1150 1675 198 270 596 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 -
    10 SK07 150 20 30250 1150 1675 198 270 658 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 53
    10 SK07 200 10 30250 1150 1675 198 270 639 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 -
    10 SK07 200 20 30250 1150 1675 198 270 690 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 53
    10 SK07 20 30250 1150 1675 198 270 839 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 53
    10 SK07 400 20 30250 1150 1675 198 270 1039 132 6XM 20X30 M39X2 56 100 35 47 18 G3/4" 31 446 50 53

    Genel Ölçü Tablosu
    Tip Top. Strok İş. Stroğu Max. Güç Hızlı İniş Gücü Yukarı Çıkış Gücü A A' B C D E F G f7 H J K L M N O R
      mm daN mm     mm   mm
    10 SK08 100 10 46800 1250 2120 240 270 665 150 8XM 20X30 M42X2 63 115 40 52 25 G3/4" 31 476 55
    10 SK08 100 20 46800 1250 2120 240 325 709 150 8XM 20X30 M42X2 63 115 40 52 25 G3/4" 31 534 55 42
    10 SK08 200 10 46800 1250 2120 240 270 765 150 8XM 20X30 M42X2 63 115 40 52 25 G3/4" 31 476 55
    10 SK08 200 20 46800 1250 2120 240 325 779 150 8XM 20X30 M42X2 63 115 40 52 25 G3/4" 31 534 55 42
    10 SK08 300 10 46800 1250 2120 240 270 865 150 8XM 20X30 M42X2 63 115 40 52 25 G3/4" 31 476 55
    10 SK08 300 20 46800 1250 2120 240 325 865 150 8XM 20X30 M42X2 63 115 40 52 25 G3/4" 31 534 55 42
